Afterneath Eurorack

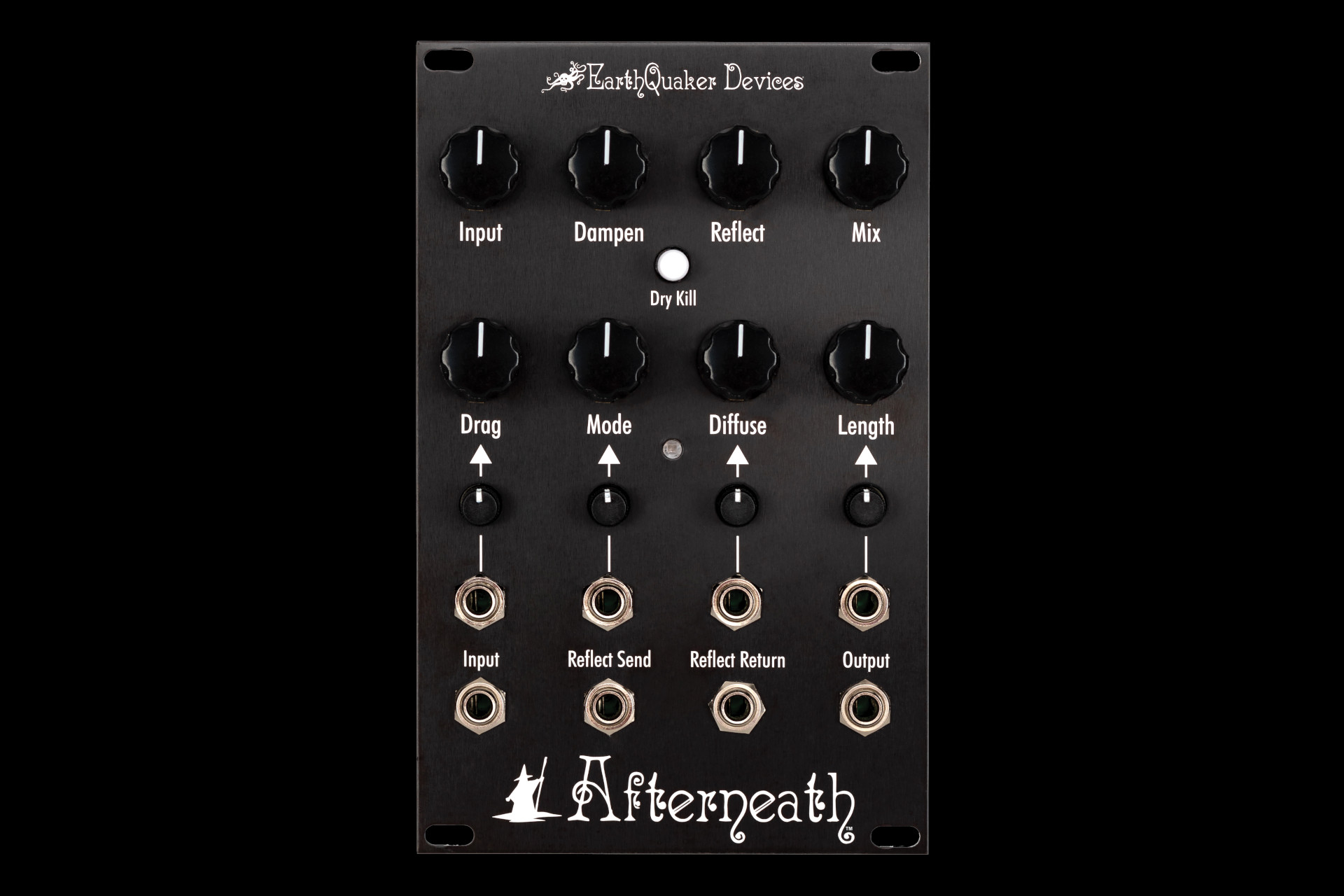

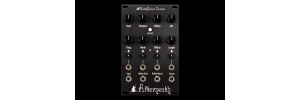

The Afterneath Eurorack Module brings the sounds of the effects pedal world to your modular synth with even more functionality. The Afterneath Module has a main audio input, a main audio output, an audio send and return for the Reflect feedback path, and 9 controls. 4 of the parameters are CV-controllable and feature a dedicated reversing attenuator. The Afterneath Module has a fully analog original signal path and a fully digital effects path.

The Afterneath Module adds functionality to the now-famous Afterneath pedal with CV control of the Diffuse, Length, and Drag controls. The brand new CV-controllable Mode parameter changes how the Drag responds to control and CV changes.

When you adjust the Drag with the control or CV, you'll notice a change in the character, fidelity, and length of the effect. There's also a pitch shift for the buffer sound. As with the Afterneath pedal, high settings of Reflect and Length will result in self-oscillation, where the pitch of the oscillation is set by the Drag. There are 9 modes that determine the behavior of the Drag and its effect on the pitch of the buffered sound:

1) Unquantized: Smooth, unquantized response across the full operating range.

2) Unquantized with variation: Smooth, unquantized response across the full operating range but with a musical variation similar to the varispeed setting on a vintage British tape delay. The Drag will shift behind any setting or CV changes, then quickly catch up.

3) Volt/octave Unquantized: Smooth and unquantized but made to align with the 1v/octave curve to allow melodic modulation of the audio in the buffer or control of the self-oscillation frequency like a voltage-controlled oscillator.

4) Chromatic Scale: 1v/octave quantization to the chromatic scale.

5) Major Scale: 1v/octave quantization to the major scale.

6) Minor Scale: 1v/octave quantization to the minor scale.

7) Pentatonic Scale: 1v/octave quantization to the pentatonic scale.

8) Octaves & Fifths: 1v/octave quantization to omit everything except octaves and fifths.

9) Octaves: 1v/octave quantization to omit everything except octaves.

Beyond delay and reverb effects with modulation, modes 3-9 expand the ability to use the Afterneath Module as a superb CV-controlled oscillator. Another new feature found only in the Afterneath Module is a mute switch, perfect if you're using the module as an effects send from your console or DAW.

Finally, the Afterneath Module has Reflect Send and Reflect Return jacks, which not only allow access to the Reflect feedback path but also allow for a phenomenal pseudo-stereo effect. In addition to routing from the main output, you can also route from the Reflect Send (for example, using the main output for your left channel and the Reflect Send for the right). This results in a wide, immersive, and ambient stereo image. This is useful when using the module as an effects send for your synth, console, or DAW. The Reflect Return jack can be used as an additional audio input. The Reflect setting will then act as an attenuator for any signal that is routed into the Reflect jack.

The new features of the Afterneath Module transform the original Afterneath into a true ambience machine and an instrument in itself.

• Same reverb algorithm from a group of short delays in 16HP Eurorack format.

• From an effect of several individual delays to an atmospheric and immersive reverb.

• New CV Drag control with 9 unique sweep modes: unquantized, unquantized with variation, unquantized volt/octave, chromatic, major, minor, pentatonic, octaves & fifths and octaves.

• Audio input and output (send & return) for the Reflect feedback path.

• CV controllable Drag, Mode, Diffuse and Length parameters each with a dedicated reversing attenuator.

• Switch to mute the original signal and leave only the effect (100% wet).

• Pseudo-stereo operation using the Reflect Send as an additional output.

• All-analog original signal path and all-digital effects path.

• Lifetime warranty.

• Width: 16HP.

• Maximum depth: 31.75mm.
